Ruijie 1000BASE SFP Singlemode 10 km

As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 1G optical modules. They are applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs).

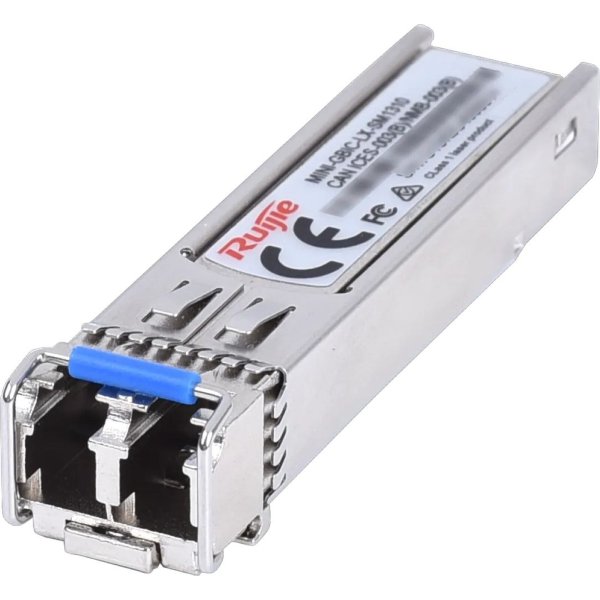

The MINI-GBIC-LX-SM1310 is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 10 km over a singlemode fiber (SMF) with an LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards.

• Max. power consumption 1.5 W
• Hot pluggable SFP MSA compliant
• Digital optical monitoring capability for strong diagnostic capabilities
• Compliant with IEEE 802.3z gigabit ethernet
• Class 1 Laser safety and RoHS compliant

Key Features

• Type of transceiver: SFP
• Applicable for multimode: no
• Applicable for single mode: yes
• Type of connector: LC
• Gigabit Ethernet: yes

Specifications
