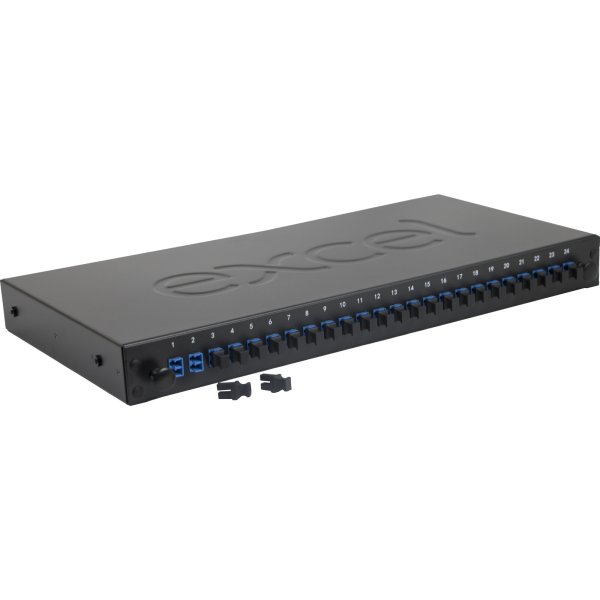

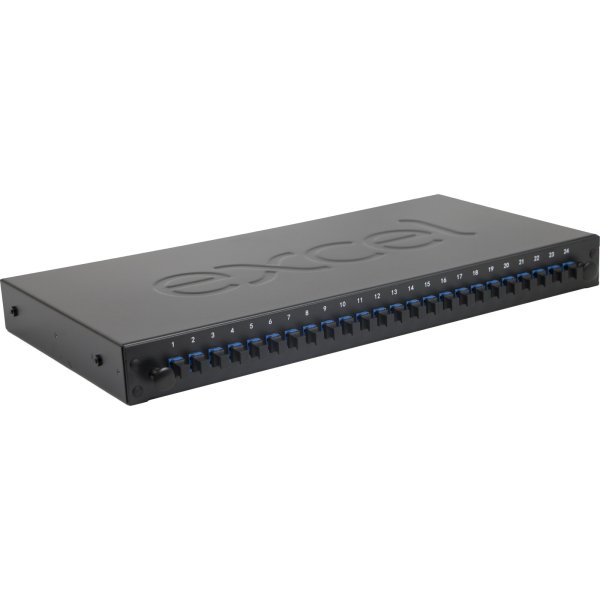

Excel Enbeam 24 Way Singlemode Fibre Optic Panel 24 LC Duplex 48F + Pigtail & Cassette Blue

 In stock
Model: 201-620
The Excel range of LC patch panels are sliding drawer "tray style" housings suitable for either direct termination or splicing of up to 48 fibres in 1U of rack space. Each panel is manufactured from high quality 2 mm thick steel and finishe...
£224.71 inc VAT £187.26 exc VAT
  • Model
  • 201-620

Description:

The Excel range of LC patch panels are sliding drawer "tray style" housings suitable for either direct termination or splicing of up to 48 fibres in 1U of rack space. Each panel is manufactured from high quality 2 mm thick steel and finished in Black powder coat to provide a strong and durable unit.

To the front of the patch panel the specified number of adaptors are loaded from left to right. Each panel utilises colour coded adaptors, beige, aqua and violet for multimode, blue for singlemode, and green for SM APC. Each duplex (or quad) adaptor accommodates two (four) terminated fibres.

Each panel has included within it a set of fixing brackets, and a cable management pack which includes cable entry glands, cable ties, splice holders, cage nuts and screws are also provided.

Note that LC panels can be assembled to order using a combination of adaptors, pigtails and splice cassettes.

Key Features

  • Multimode/singlemode options available
  • Choice of port density
  • Management and fixing kit included
  • Adjustable fixing arms included
  • Multiple cable entry to rear
  • Sliding drawer on ball bearing runners
  • Up to 48 fibres
  • 1U rack space design
  • Port identification numbers
  • Optional patchcord management
  • Recessed adaptors - larger labelling field
  • Special configurations made to order
  • 25 year system warranty
  • CIBSE TM65 Embodied Carbon: 21.857 kg CO2e

Specifications

Suitable for number of fibre cores 48
Suitable for number of module inserts 24
Loaded with number of couplings/adapters 24
With pigtails yes
Fibre type Single mode
Fibre class OS2
APC-type no
Type of connector external LC-Duplex
Type of connector interior LC-Duplex
Colour Black
RAL-number 9005
Mounting method 482.6 mm (19 inch) mounting
Number of rack units (RU) 1
Height 43.5 mm
Width 483 mm
Depth 219.5 mm
