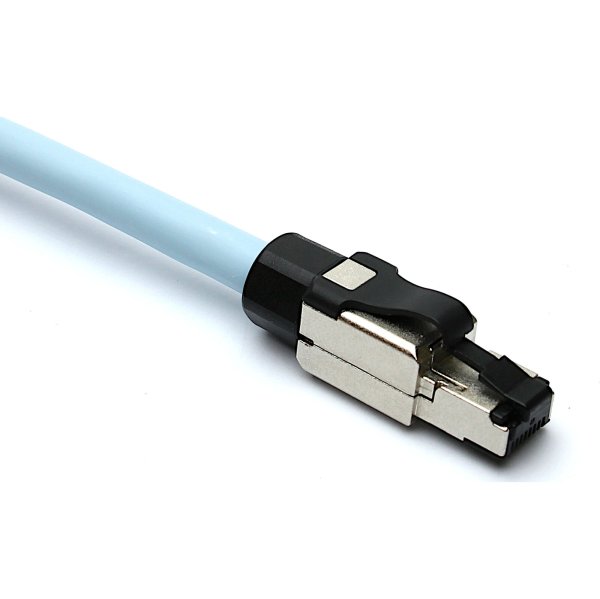

This mini screened field termination RJ45 plug offers easy, toolless termination, and it complies fully with ISO/IEC 11801, Cat6A and ANSI/TIA-568-C.2 standards. It offers a fully shielded die-cast zinc alloy, nickel plated body and gold plated phosphor bronze contact pins.

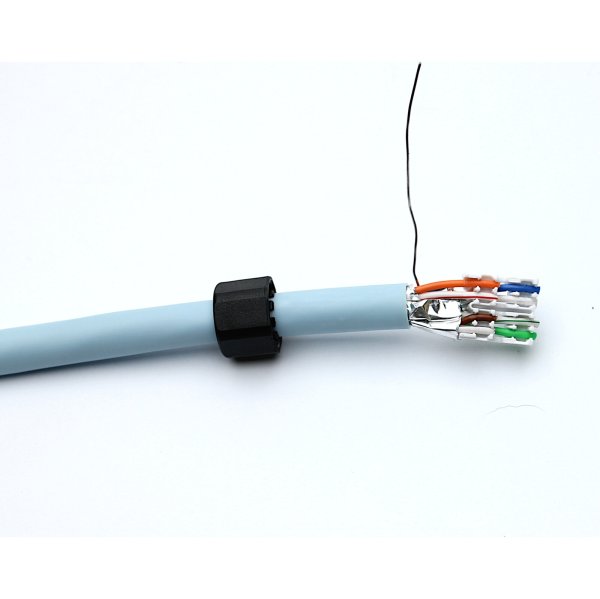

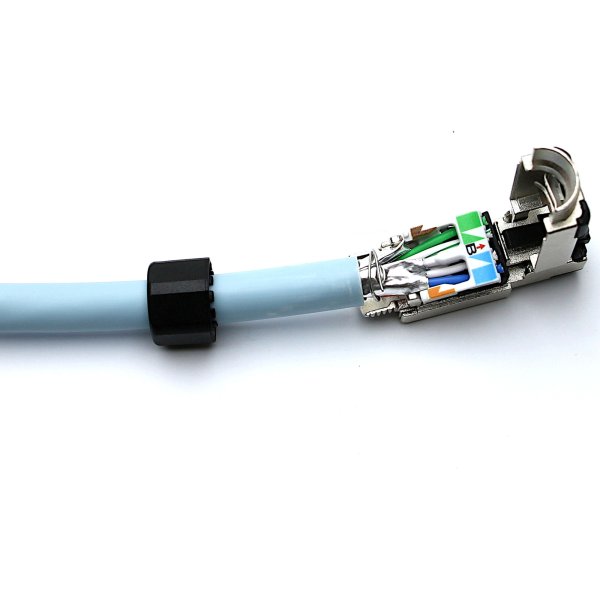

Suitable for cable diameters between 6 mm and 9.2 mm, strain relief is provided by the compression nut on the back of the connector. IDC termination accepts wire gauges from 22 to 26AWG as solid or standed cable.
